™Rawbin Technology Deep-Dive
Explore the biological, mechanical, and thermodynamic systems powering the future of indoor home composting.
The Gap in Current Home Composting Solutions
Today, households have very limited practical options to manage food waste at source. Existing solutions fall short. Conventional home composting systems such as pits or bins require months of careful management of moisture, aeration, flies, worms, and carbon-to-nitrogen balance. These systems often produce odor, attract pests, and demand significant user effort, leading to high abandonment rates.
Electric dehydrators and grinders reduce waste volume but do not produce real compost. Their output is often still discarded, and many require recurring consumables, high energy use, or frequent maintenance. Existing solutions simply don’t fit modern urban lifestyles, leaving a clear gap for a clean, effortless, and affordable solution.
Accelerating Nature with Rawbin
Rawbin is an electric home composting system designed to turn kitchen waste into real compost. The device uses controlled heat, airflow, and internal agitation to accelerate the breakdown of organic matter without producing only dehydrated flakes.
Users place food scraps and the Rawbin microbial mixture into Rawbin’s upper chamber, where the system manages temperature, oxygen flow, and microbial activity to support accelerated decomposition. The outcome is nutrient-rich real compost suitable for gardening and plant growing applications. Rawbin is intended for frequent home use, with a design that allows organic waste to be added regularly and composted efficiently through the programmed cycle.
How It Works: Drying & Curing
Rawbin segregates decomposition into two distinct stages — drying above, curing below — connected by a perforated filter.
The compost journey starts here.
Where curing actually happens.
Where ready compost is collected.

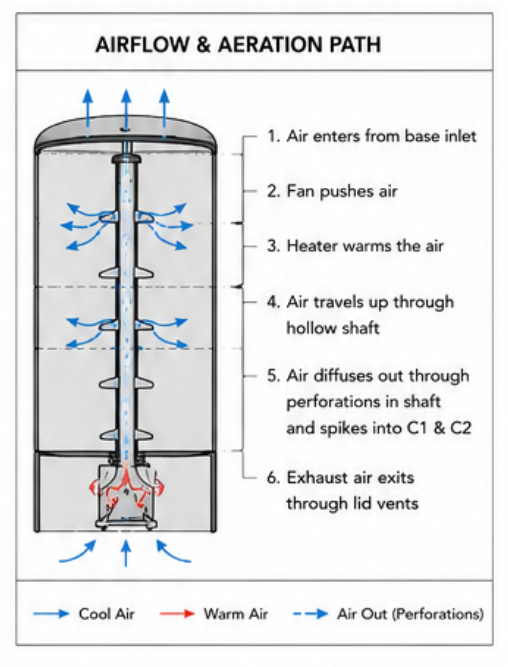

Airflow & Aeration Path
Base Intake
Cool air enters from the base inlet.
Active Propulsion
An internal fan pushes air upward into the system.
Thermal Conditioning
A smart heater warms the air to the optimal temperature.
Core Delivery
Warm air travels up through the central hollow shaft.
Direct Injection
Air diffuses into chambers C1 & C2 via shaft perforations.
Filtered Exhaust
Moisture-rich exhaust exits through the top lid vents.
The compost journey starts here.
Where curing actually happens.
Where ready compost is collected.
Airflow & Aeration Path
Base Intake
Cool air enters from the base inlet.
Active Propulsion
An internal fan pushes air upward into the system.
Thermal Conditioning
A smart heater warms the air to the optimal temperature.
Core Delivery
Warm air travels up through the central hollow shaft.
Direct Injection
Air diffuses into chambers C1 & C2 via shaft perforations.
Filtered Exhaust
Moisture-rich exhaust exits through the top lid vents.
Dual-Stage Separation
A perforated filter with 2–3 inch holes separates both chambers. As dried waste shrinks, a sweeping bar automatically transfers it down to the curing stage.
Natural Heat, Low Energy
The curing chamber captures exothermic heat generated by microbial metabolism — letting biology do the heavy lifting with minimal electricity.
Stirred, Sensed & Cleanly Harvested
Blades agitate every 2–3 hrs. Sensors track moisture, temp & airflow. A FIFO filter drops only fully cured compost into the harvest drawer.
The Self-Sustaining Microbial System
Rawbin's composting ability depends not on chemistry or heat alone, but on a living microbial culture — a self-sustaining ecosystem seeded into the device at setup.
The "Curd-Milk" Analogy
Similar to how curd is made from milk: a small quantity of active culture is introduced to the right environment, and from that point the colony propagates itself, eliminating the need for recurring starter purchases.
5 Functional Groups
Combines five specialized microbes — Bacillus, Lactobacillus, Trichoderma, Aspergillus, and Streptomyces — selected specifically to break down a wide range of organic inputs.
Zero Replacement Filters
Active aeration combined with the microbial process completely eliminates the need for carbon filters. The system uses fresh, moist compost as an ongoing inoculant.
Vacation Mode
Leaving town? Ensure the bin status is green, and the microbes enter a passive, dormant mode. When you return, simply restart Rawbin to stir and revive the ecosystem instantly.
7–10 Days
First compost harvest is ready, after which the culture becomes fully matured and active.
Intelligent Monitoring & Control
The Rawbin mobile app acts as the digital nerve center for your composting journey, offering total visibility and community features.
Bin Status & Tracking
Live Red/Green status indicators and a compost readiness tracker keep you informed on exactly when your harvest is ready.
Voice-Powered Guidance
Not sure if something is compostable? Just ask. Voice input powers our "What can go in Rawbin" lookup feature.
Recipes & Community
Access a curated library of leftover recipes to reduce waste, and connect with local gardeners via our compost exchange network.
Technical Specifications
Designed and built for peak performance, efficiency, and quiet home integration.
Note on Dimensions: Physical dimensions are 30 × 10 inches (H × D) with a total volume of 10 L. These specifications are engineered specifically for residential kitchen/balcony footprints in urban households.
